Add Item
The process to add a new device requires 4 or 9 pages depending on the device type.

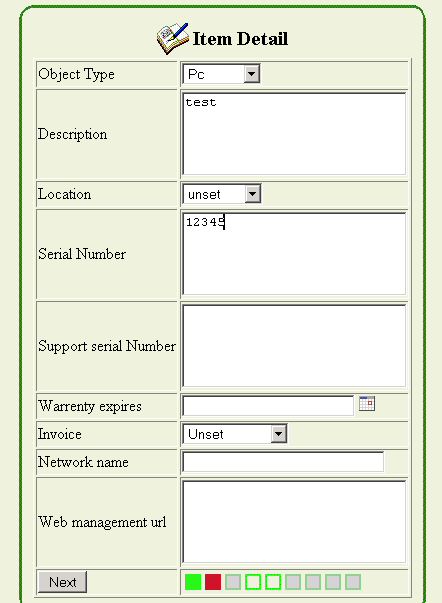

In the first page you add generic information about the device:
- Device type. Select the type of this item. The available types are managed in the types page
- Description, supply the item description
- Location, room, roof, town,... the location where the object is. The available location are managed in the location page
- Serial number
- Support serial number. The eventual serial number required by the support service.
- Warrenty expires
- Invoice. This field links the object to its invoice. If you had added the invoice through the add invoice page, it will be available in the select box. If you have not any invoice leave the field 'unset'
- Network name
- WebManagement Url. If the object has a web management system, enter here the address to that web interface.
The second page will be shown only if the device type is 'Pc'. In this page you may enter some pc related information:
- Graphics adapter
- Hard Disk
- Cpu
- Ram

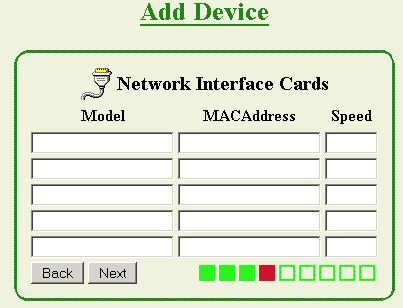

Network cards related information. You may add at least 5 cards

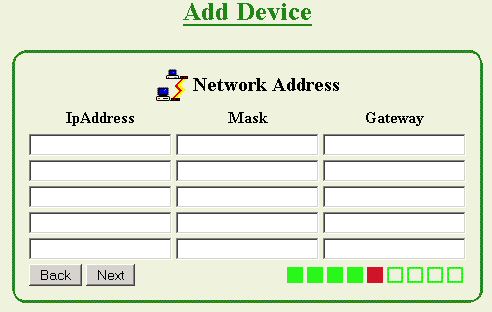

Ip addresses related information. You may add at least 5 Ip address

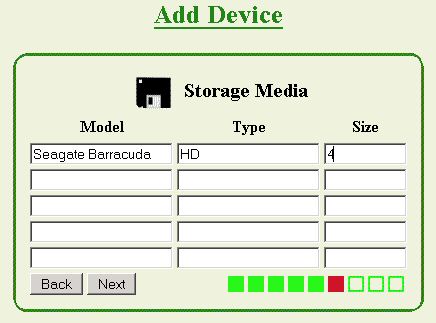

In this form you may add your mass storage devices

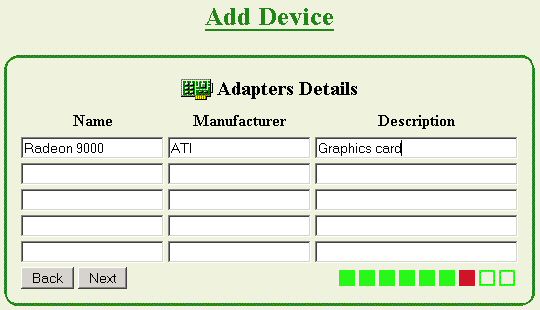

Other adapters card related information. You may add at least 5 adapters

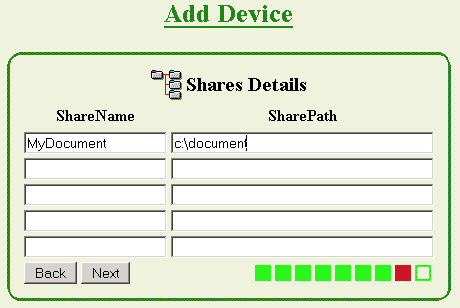

Shared folder.

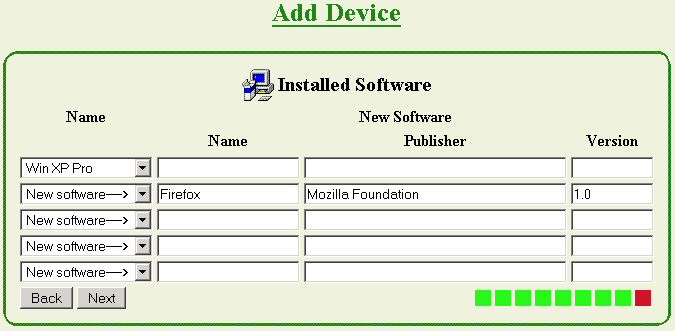

Installed software. The select box shows all software added previously into PcInventory, you may pick up many of them, or choose 'New Software -->' and add the new software to PcInventory library.
The last page says that the added informations are stored successfully.
No one of the above fields are compulsory. You may fill the field you need.
